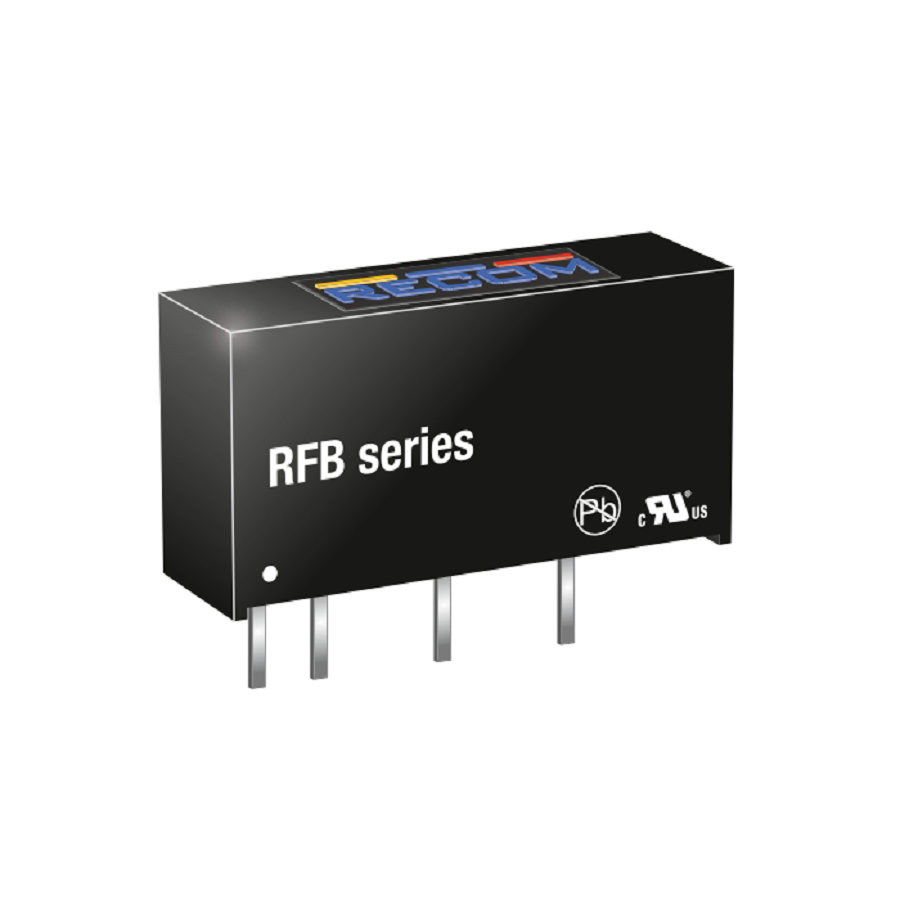

RFB-0505S
Manufacturer:
Recom Power
Mfr.Part #:
RFB-0505S
Datasheet:
Description:
DC to DC Converters SIP-6 Module Through Hole Nominal Input Voltage:5 V Min Input Voltage:4.5 V Max Input Voltage:5.5 V 80 %
| Parameter | Value |
|---|---|
| Length | 19.6 mm |
| Width | 6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.2 mm |
| Packaging | Tube |
| RoHS | Compliant |
| Weight | 2.2 g |
| Min Input Voltage | 4.5 V |
| Output Current | 200 mA |
| Output Voltage | 5 V |
| Max Input Voltage | 5.5 V |
| Isolation Voltage | 1 kV |
| Output Power | 1 W |
| Efficiency | 80 % |
| Nominal Input Voltage | 5 V |
| Max Output Voltage | 5 V |
| Schedule B | 8504409580 |
| Output Current-Channel 1 | 200 mA |
| Output Voltage-Channel 1 | 5 V |
Stock: 1541
Distributors
pcbx
pcbxUnit Price$1.24563
Ext.Price$1.24563
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.24563 | $1.24563 |
| 10 | $1.21999 | $12.19990 |
| 25 | $1.18920 | $29.73000 |
| 50 | $1.16065 | $58.03250 |
| 100 | $1.13278 | $113.27800 |
| 300 | $1.10728 | $332.18400 |
| 500 | $1.08234 | $541.17000 |
| 1000 | $1.05904 | $1059.04000 |
| 3000 | $1.03624 | $3108.72000 |
| 5000 | $1.01394 | $5069.70000 |
